6CTAA8.3-C260
Original Cummins, new machines at absolute wholesale prices.
HekoPower Group is the reliable choice.
Our partner Cummins, a global power solutions leader, comprises five business segments – Components, Engine, Distribution, Power Systems and Accelera by Cummins – supported by Cummins global manufacturing and extensive service and support network, skilled workforce and vast technological expertise. In 1981, Chongqing Engine Plant started to license-produce Cummins engines, and in 1995, it jointly established a Chinese joint venture engine factory with Cummins.
6CTAA8.3-C260 could be available for construction, agriculture, mining, national defence, oil and gas, railway and other fields, widely used in Dongfeng Trucks, excavators, loaders, cranes, rollers, graders, bulldozers, forklifts, pavers, iron planing machines, drilling machines, concrete mixers, water pumps, and engine power packs.
Technical Specifications
General Engine Data

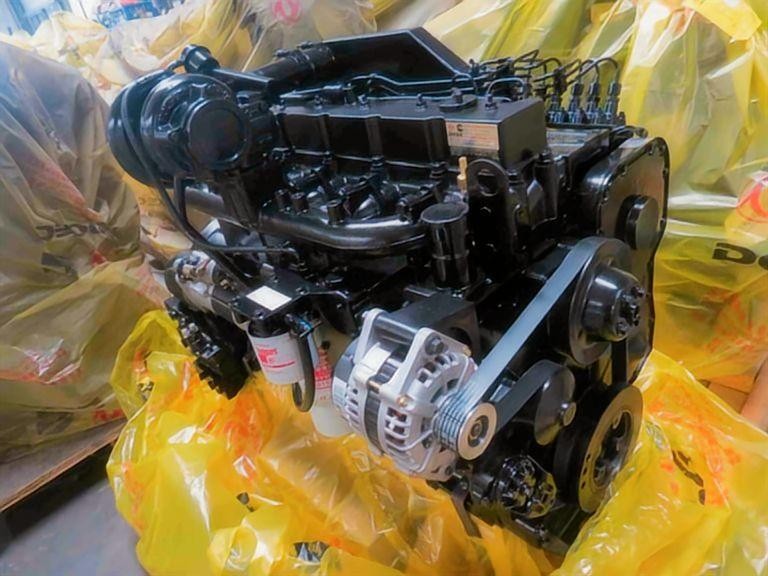

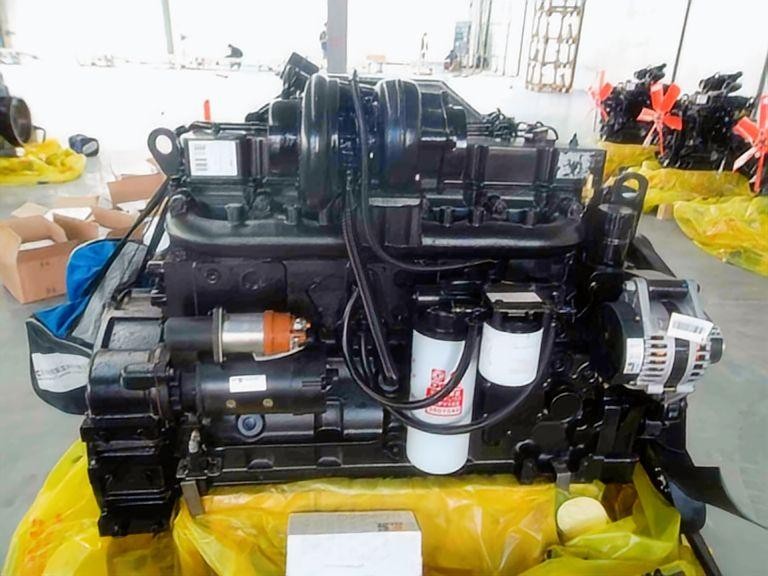

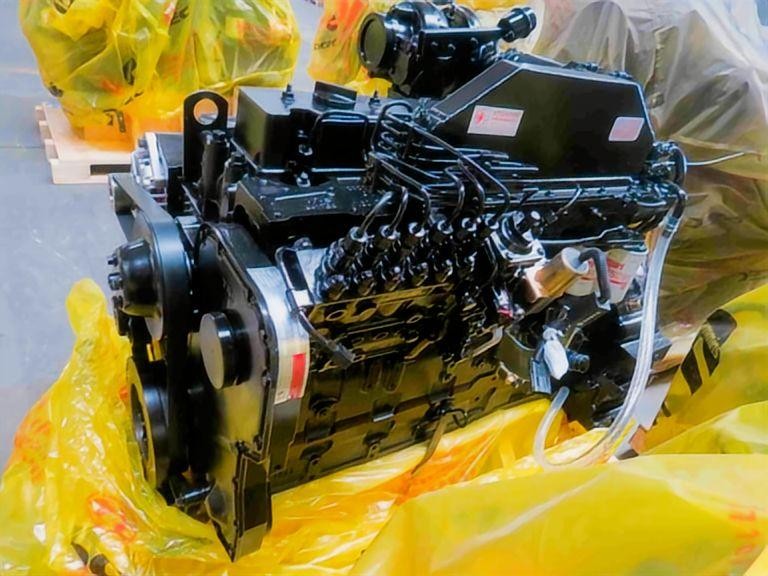

Engine Model: Cummins 6CTAA8.3-C260
Type: 6 Cylinders in Line
Displacement: 8.3 L
Bore * Stroke: 114 * 135
Overall Dimension: 1560mm*900mm*1400mm
Net Weight (with flywheel & alternator): 646 Kg
Key Performance Date
Rated Power: 194 kW/260HP
Rated Speed: 2200 rpm
Max Torque/Speed: 1100 N.m @ 1400 rpm
Fuel Consumption @ Rated Power: 230 g/Kw.h
Max Continuous Running Altitude: 2000 m
More Technical Data
Certification: Euro II
Aspiration: Turbocharged-Intercooled
Fuel System: Wuxi Weifu PW2000 Pump/ RSV Govenor
Compression Ratio: 18:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 9.8 L
Cummins C8.3-C Series
Cummins C8.3-C Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes 6CTA8.3-C145, 6CTA8.3-C175, 6CTA8.3-C180, 6CTA8.3-C195, 6CTA8.3-C205, 6CTA8.3-C215, 6CTA8.3-C230, 6CTA8.3-C240, 6CTA8.3-C260, 6CTAA8.3-C215, 6CTAA8.3-C260.
