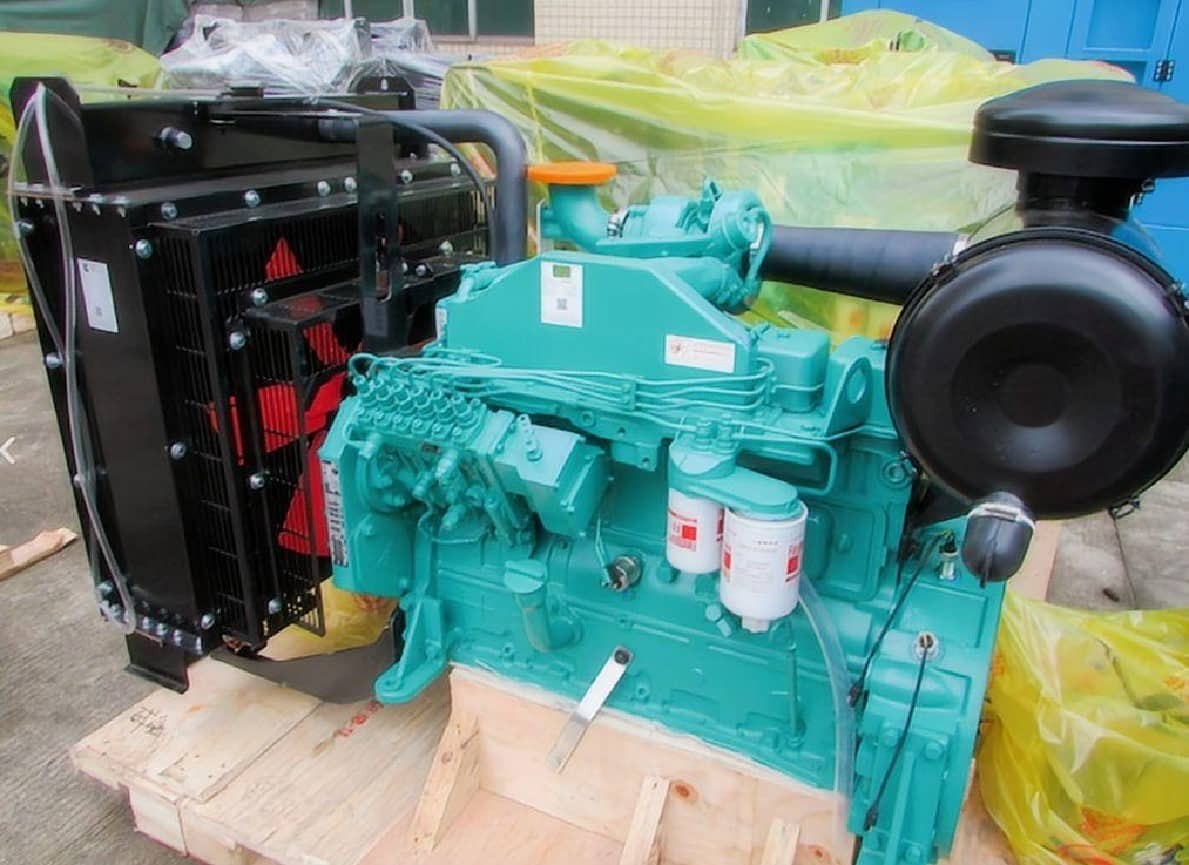

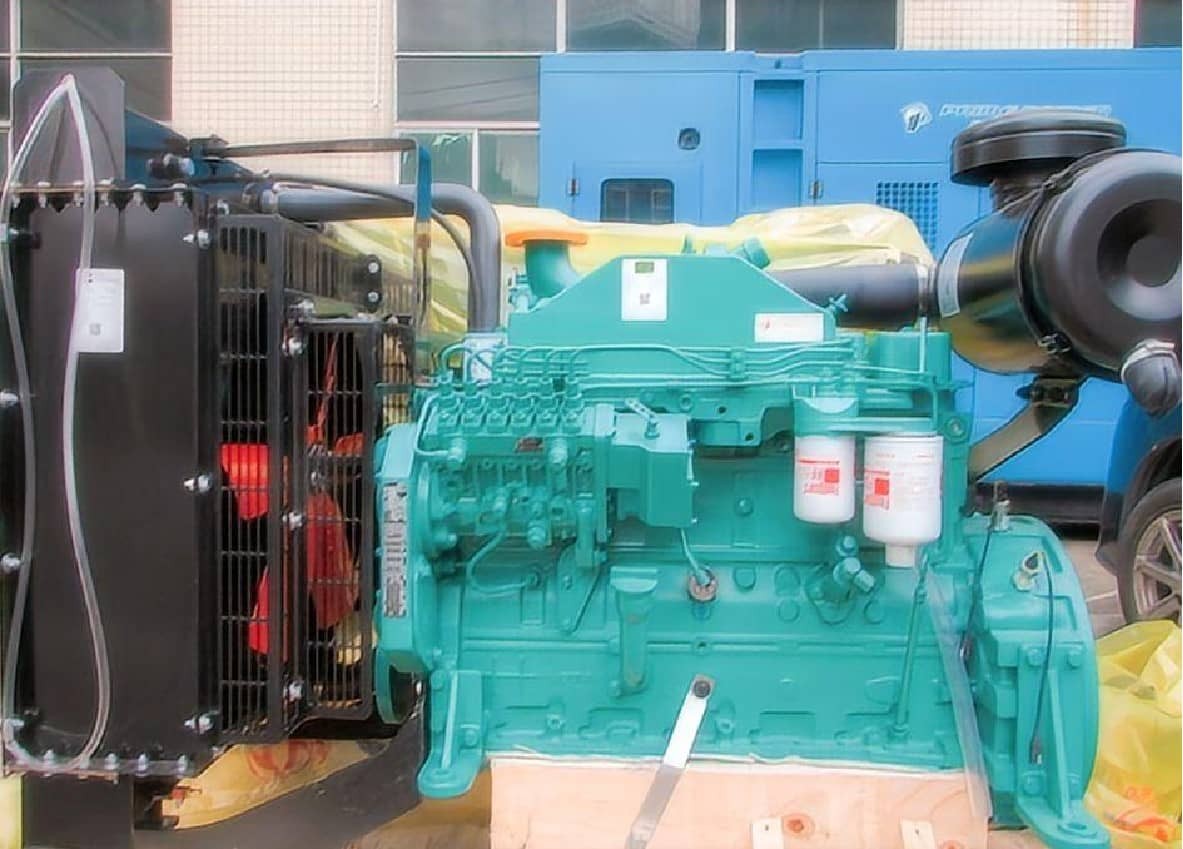

6CTAA8.3-G2-183kw
Original Cummins, new machines at absolute wholesale prices.
HekoPower Group is the reliable choice.
Our partner Cummins, a global power solutions leader, comprises five business segments – Components, Engine, Distribution, Power Systems and Accelera by Cummins – supported by Cummins global manufacturing and extensive service and support network, skilled workforce and vast technological expertise. In 1981, Chongqing Engine Plant started to license-produce Cummins engines, and in 1995, it jointly established a Chinese joint venture engine factory with Cummins.
6CTAA8.3-G2-183kw is the generator used as a backup or safety equipment in the absence of mains power or in the event of a power failure and/or blackout.
Technical Specifications
General Engine Data
Engine Model: Cummins 6CTAA8.3-G2-183kw
Type: 6 Cylinders in Line, 4 Stroke Diesel
Displacement: 8.3 L
Bore * Stroke: 114 * 135
Net Weight: 684 Kg
Overall Dimension: 1360mm*780mm*988mm
Key Performance Date
Rated Power/Standby Power: 183 kW/245 HP, 203 kW/272 HP
Continuous Output/Speed: 149 kW/200HP @ 1500 rpm
Rated Speed: 1500 rpm
Low Idle Speed: 750-950 rpm
Fuel Consumption @ Running: ≤ 229g/Kw.h
Torque/Rated Output: 1758 N.m @ 1500 rpm
Torque/Standby Output: 1950 N.m @ 1500 rpm
More Technical Data
Aspiration: Turbocharged/Charge Air Cooled
Fuel System: BYC PB Pump/GAC Governor
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 12.3 L
Governor Type: Electronic, Regulation ≤5%
Compression Ratio: 17.3:1
Cummins C8.3-G Series
Cummins C8.3-G Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes 6CT8.3-G2-133kw, 6CTA8.3-G1-163kw, 6CTA8.3-G2-163kw, 6CTAA8.3-G2-183kw.In accordance with the criteria of Machinery Safety Directive 2006/42, movable elements such as distribution belts, fans, and parts that acquire high temperatures during operation, such as exhaust manifolds, have their respective safeguards. Before being delivered, the generator is thoroughly checked at the factory. Voltage, frequency, and load are all tested, as well as the appropriate operation of warnings and the influence of engine oil temperature on stop.
Cummins® heavy-duty engine
Rugged 4-cycle, industrial diesel delivers reliable power, low emissions and fast response to load changes.
Alternator
Several alternator sizes offer selectable motor starting capability with low reactance 2/3 pitch windings, low waveform distortion with non-linear loads and fault clearing short-circuit capability.
Cooling system
Standard integral set-mounted radiator system, designed and tested for rated ambient temperatures, simplifies facility design requirements for rejected heat.
Control system
The PowerCommand® electronic control is standard equipment and provides total genset system integration including automatic remote starting/stopping, precise frequency and voltage regulation, alarm and status message display, AmpSentryTM protection, output metering, auto-shutdown at fault detection and NFPA 110 Level 1 compliance.
Fuel Tanks
Dual wall sub-base fuel tanks and in-skid day tanks are also offered.
NFPA
The genset accepts full rated load in a single step in accordance with NFPA 110 for Level 1 systems.
