Details

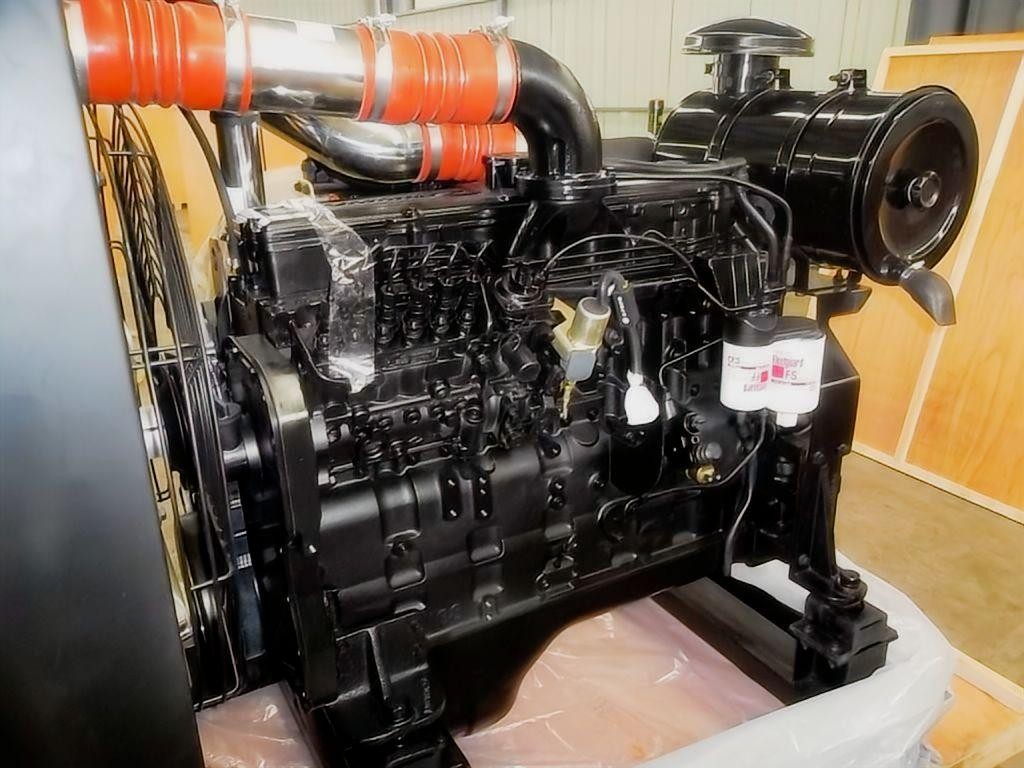

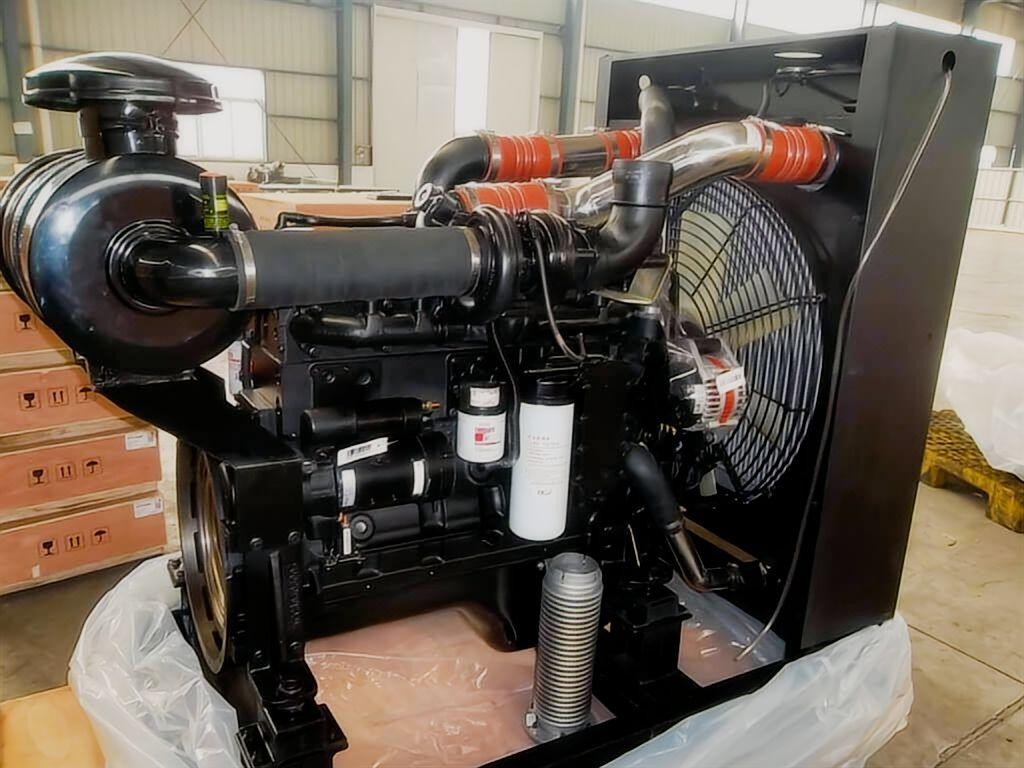

6LTAA8.9-C360
Original Cummins, new machines at absolute wholesale prices.
HekoPower Group is the reliable choice.
Our partner Cummins, a global power solutions leader, comprises five business segments – Components, Engine, Distribution, Power Systems and Accelera by Cummins – supported by Cummins global manufacturing and extensive service and support network, skilled workforce and vast technological expertise. In 1981, Chongqing Engine Plant started to license-produce Cummins engines, and in 1995, it jointly established a Chinese joint venture engine factory with Cummins.
6LTAA8.9-C360 could be available for construction, agriculture, mining, national defence, oil and gas, railway and other fields, widely used in Dongfeng Trucks, excavators, loaders, cranes, rollers, graders, bulldozers, forklifts, pavers, iron planing machines, drilling machines, concrete mixers, water pumps, and engine power packs.
Technical Specifications
General Engine Data
Engine Model: Cummins 6LTAA8.9-C360
Type: 6 Cylinders in Line
Displacement: 8.9 L
Bore * Stroke: 114 * 145
Overall Dimension: 1400mm*800mm*1040mm
Net Weight (with flywheel & alternator): 650 Kg
Key Performance Date
Rated Power: 264 kW/360HP
Rated Speed: 2200 rpm
Max Torque/Speed: 1400 N.m @ 1400 rpm
Fuel Consumption @ Rated Power: 222 g/Kw.h
Max Continuous Running Altitude: 2000 m
Torque/Rated Speed: 1146 N.m @ 2200 rpm
More Technical Data
Certification: Euro II
Aspiration: Turbocharged-Intercooled
Fuel System: Beiyou P7100 Pump/RSV Governor
Compression Ratio: 16.6:1
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 11.1 L
Cummins L8.9-C Series
Cummins CL8.9-C Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes 6LTAA8.9-C300, 6LTAA8.9-C325, 6LTAA8.9-C340, 6LTAA8.9-C360.
