Details

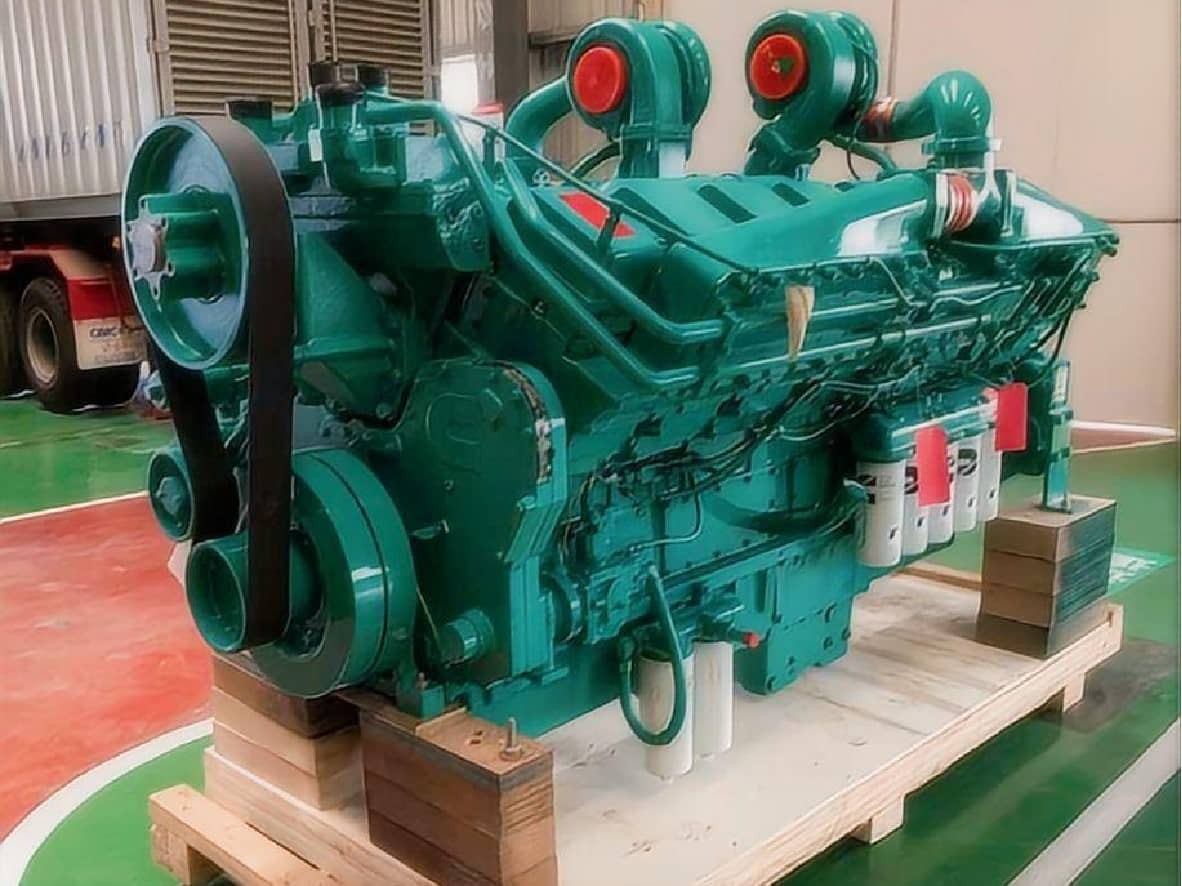

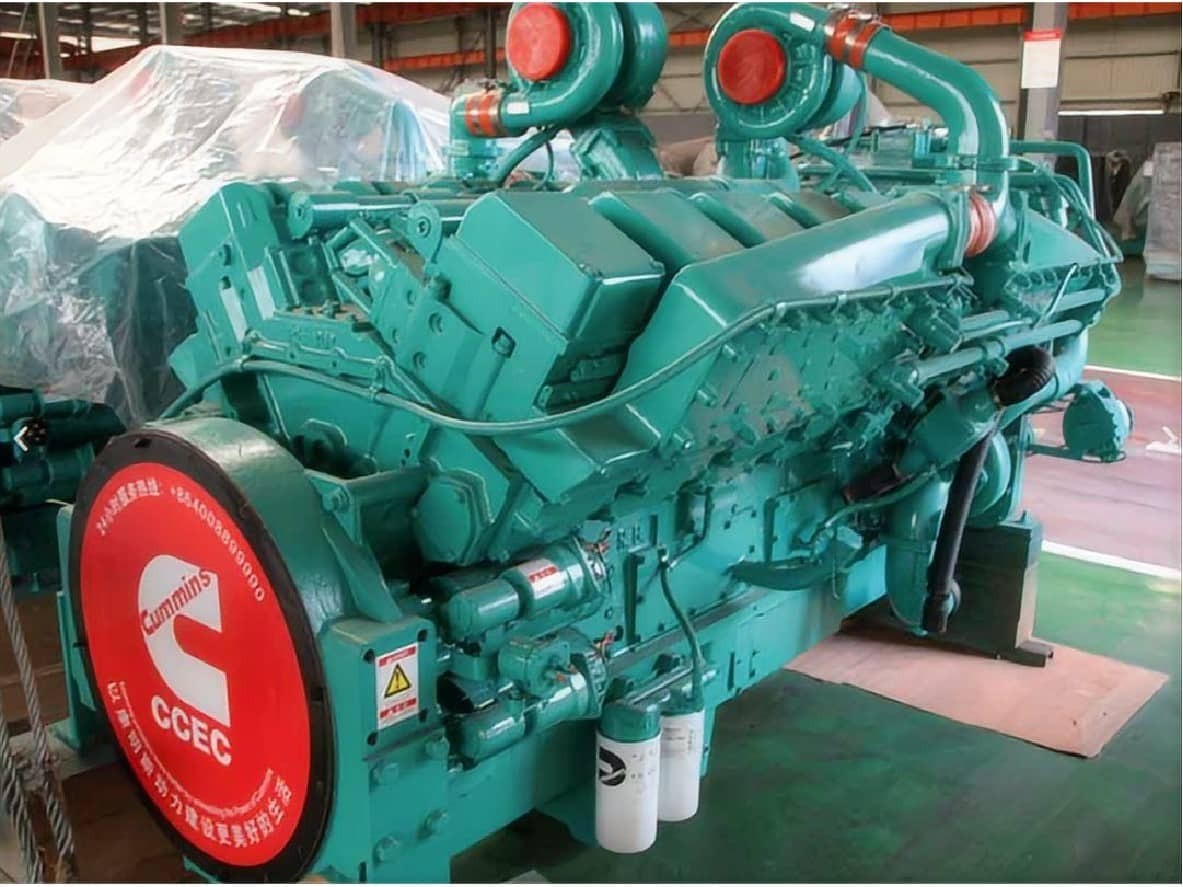

KTA50-G8-1200KW
Original Cummins, new machines at absolute wholesale prices.
HekoPower Group is the reliable choice.
Our partner Cummins, a global power solutions leader, comprises five business segments – Components, Engine, Distribution, Power Systems and Accelera by Cummins – supported by Cummins global manufacturing and extensive service and support network, skilled workforce and vast technological expertise. In 1981, Chongqing Engine Plant started to license-produce Cummins engines, and in 1995, it jointly established a Chinese joint venture engine factory with Cummins.
KTA50-G8-1200KW is the generator used as a backup or safety equipment in the absence of mains power or in the event of a power failure and/or blackout.
Technical Specifications
General Engine Data
Engine Model: Cummins KTA50-G8-1200KW
Type: 16 Cylinders, 60° V Type, 4 Stroke Diesel
Displacement: 50.3 L
Bore * Stroke: 159 * 159
Net Weight: 5662 Kg
Overall Dimension: 2978mm*2080mm*1780mm
Key Performance Date
Rated Power, Standby Output: 1200 kW/1608HP, 1429 kW/1915HP
Rated Speed: 1500 rpm
Low Idle Speed: 725-775 rpm
Fuel Consumption @ Rated Power: 289 L/Kw.h
Continuous Output/Speed: 1100 kW/1475HP @ 1500 rpm
More Technical Data
Engine Exhaust Manifold: Dry Exhaust Manifold
Aspiration: Turbocharged and Aftercooled
Compression Radio: 14.9:1
Fuel System: Cummins PT Pump, Direct Injection
Starting System: Electrical starting motor (24V)
Cooling Method: Water Cooled, 1 pump or 2 pumps/2 loops
Lowest Starting Temp (Without auxiliary system): -12℃
Governor Type: Mechanical Control, ≤ 5%
Cummins K50-G Series
Cummins K50-G Series, original products from Chongqing Cummins Engine Plant(CCEC). This series mainly includes KTA50-G3-1097KW, KTA50-G3-1220KW, KTA50-G8-1200KW, KTA50-GS8-1287KW, KTA50-G9-1384KW, KTA50-G15-1400KW.
Coolpac Integrated Design
Large capacity after cooler results in cooler, denser intake air for more efficient combustion and reduced internal stresses for longer life.
Fuel System
Products are supplied complete with cooling package and air cleaner kit for a complete power package. Each component has been specifically developed and rigorously tested for G-Drive products, ensuring high performance, durability and reliability.
Pistons
Pistons are dual Ni-resist, aluminium alloy, ground and shaped to compensate for thermal expansion, which assures a precise fit at all normal operating temperatures.
Aftercooler
Large capacity integral aftercoolers are supplied with cooling water separate from the engine jacket. This provides cooler, denser intake air for more complete combustion and reduced engine stresses for longer life and low exhaust emissions.
Cooling system
A two pump, two loop system must be employed, i.e. the engine jacket is cooled by one radiator or heat exchanger and the aftercoolers are cooled by a separate radiator or heat exchanger.
