Details
QSKTAA19-G3
Original Cummins, new machines at absolute wholesale prices.
HekoPower Group is the reliable choice.
Our partner Cummins, a global power solutions leader, comprises five business segments – Components, Engine, Distribution, Power Systems and Accelera by Cummins – supported by Cummins global manufacturing and extensive service and support network, skilled workforce and vast technological expertise. In 1981, Chongqing Engine Plant started to license-produce Cummins engines, and in 1995, it jointly established a Chinese joint venture engine factory with Cummins.
QSKTAA19-G3 is the generator used as a backup or safety equipment in the absence of mains power or in the event of a power failure and/or blackout.
Technical Specifications
General Engine Data

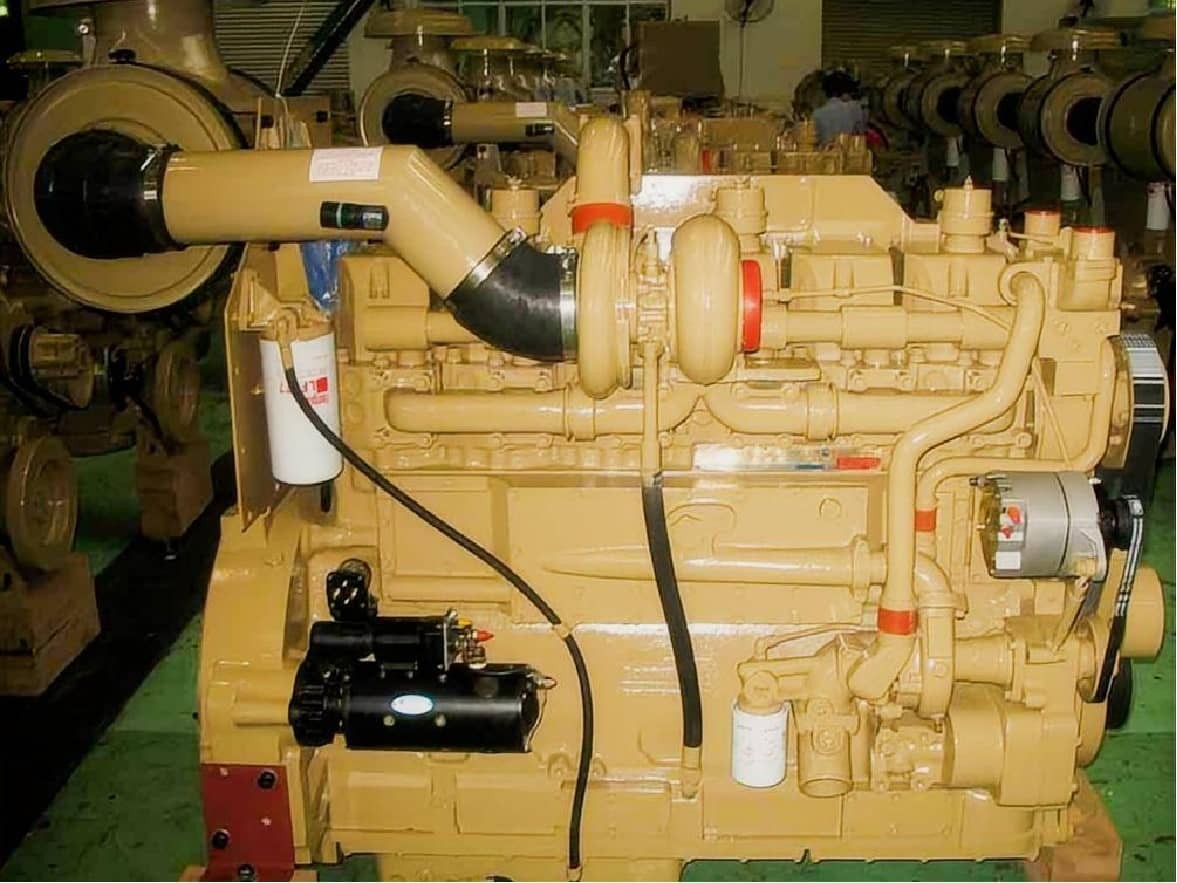

Engine Model: Cummins QSKTAA19-G3
Type: 6 Cylinders in Line, 4 Stroke Diesel
Displacement: 19 L
Bore * Stroke: 159 * 159
Net Weight: 1977 Kg
Overall Dimension: 1324mm*835mm*1183mm
Key Performance Date
Rated Power/Standby Output: 574 kW/770HP, 634 kW/850HP
Rated Speed: 1500 rpm
Low Idle Speed: 675-775 rpm
Fuel Consumption: 143 L/Kw.h
More Technical Data
Fuel System: Cummins PT Pump, Direct Injection
Aspiration: Turbocharged/Charge Air Cooled
Cooling Method: Water Cooled
Electrical System (Starter Motor/Alternator): 24V
Governor Type: Electronic Control
Compression Ratio: 13.5:1
Lowest Starting Temp (Without auxiliary system): -12℃
Engine Exhaust Manifold: Optional for Wet Exhaust manifold Heat exchanger
Cummins QSK-G Series
Cummins QSK-G Series, original products from Chongqing Cummins Engine Plant(CCEC). This series mainly includes QSNT-G, QSK19-G4, QSK19-G5, QSKTAA19-G3, QSK38-G1, QSK38-G2, QSK38-G3, QSK38-G4, QSK38-G5, QSK50-G2, QSK50-G3, QSK50-G4, QSK50-G6, QSK50-G7.
High pressure fuel pump, Modular Common Rail fuel System (MCRS)
and state of the art integrated electronic control system provide superior performance, efficiency and diagnostics. The electronic fuel pumps deliver up to 1600 bar injection pressure and eliminate mechanical linkage adjustments. The new MCRS utilizes an electric priming pump which is integrated with the off-engine stage-1 fuel filter head and is controlled and powered by the engine ECM. The stage-2 fuel filters are mounted on-engine.
CTT (Cummins Turbo Technologies) HX83 turbo-charging
utilizes exhaust energy with greater efficiency for improved emissions and fuel consumption.
Charge Air Cooling
QSK19 engine requires the use of an Air-to-Air heat exchanger or Charge-Air-Cooler (CAC) to reduce intake manifold temperature and to meet the lower emissions requirements.
Ferrous Cast Ductile Iron (FCD) Pistons
High strength design delivers superior durability.
G-Drive Integrated Design
Each component has been specifically developed and rigorously tested for G-Drive products, ensuring high performance, durability and reliability.
