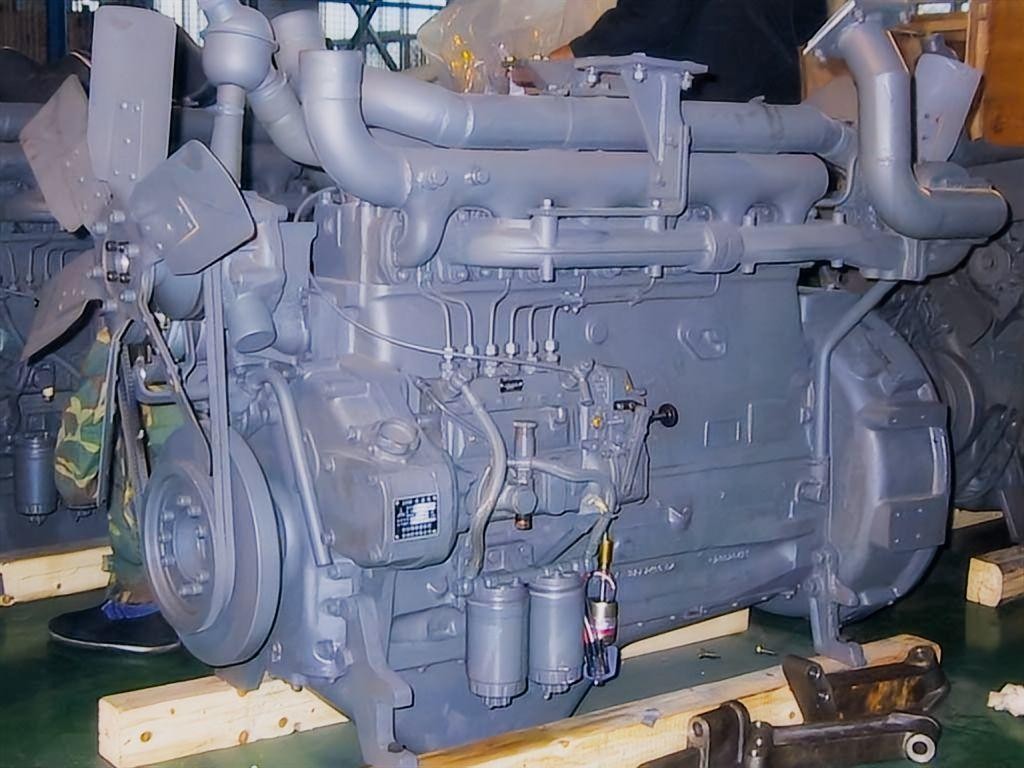

Deutz TD226B-6D
Original Deutz licence plant, new machines at absolute wholesale prices.
HekoPower Group is the reliable choice.
Our partner Deutz, with 160 years of heritage, is one of the world’s leading manufacturers of innovative drive systems. Weichai Power Co., Ltd.("Weichai Power"), Fully Deutz technology & product line. Now the Licence ended, replaced with Weichai WP series but same quality.
Deutz TD226B-6D is the generator used as a backup or safety equipment in the absence of mains power or in the event of a power failure and/or blackout.
Technical Specifications
General Engine Data
Engine Model: Deutz TD226B-6D
Type: 6 Cylinders, in Line
Displacement: 6.23 L
Bore * Stroke: 105 * 120
Overall Dimension: 1469mm*781mm*1385mm
Key Performance Date
Rated Power/Standby Power(1500 RPM): 90 kW, 105kW
Rated Power/Standby Power(1800 RPM): 99 kW, 115.5kW
Rated Speed: 1500/1800 rpm
Specific Fuel Consumption: 208 g/kW.h
More Technical Data
Certification: Euro II
Aspiration: Turbocharged
Governor Type: Mechanical/Electrical
Cooling Method: Water Cooled
Electrical System (Starter Motor/Alternator): Electronic Starting (24V)
Flywheel Casing: SAE1, SAE2
Deutz 226B-Generator Engine Series
Deutz 226B-Generator Engine Series, original products from Weichai Power Engine Plant. This series mainly includes Deutz D226B-3D, Deutz TD226B-3D, Deutz D226B-4D, Deutz TD226B-4D, Deutz TD226B-6D, Deutz TBD226B-6D. In accordance with the criteria of Machinery Safety Directive 2006/42, movable elements such as distribution belts, fans, and parts that acquire high temperatures during operation, such as exhaust manifolds, have their respective safeguards. Before being delivered, the generator is thoroughly checked at the factory. Voltage, frequency, and load are all tested, as well as the appropriate operation of warnings and the influence of engine oil temperature on stop.
