Details

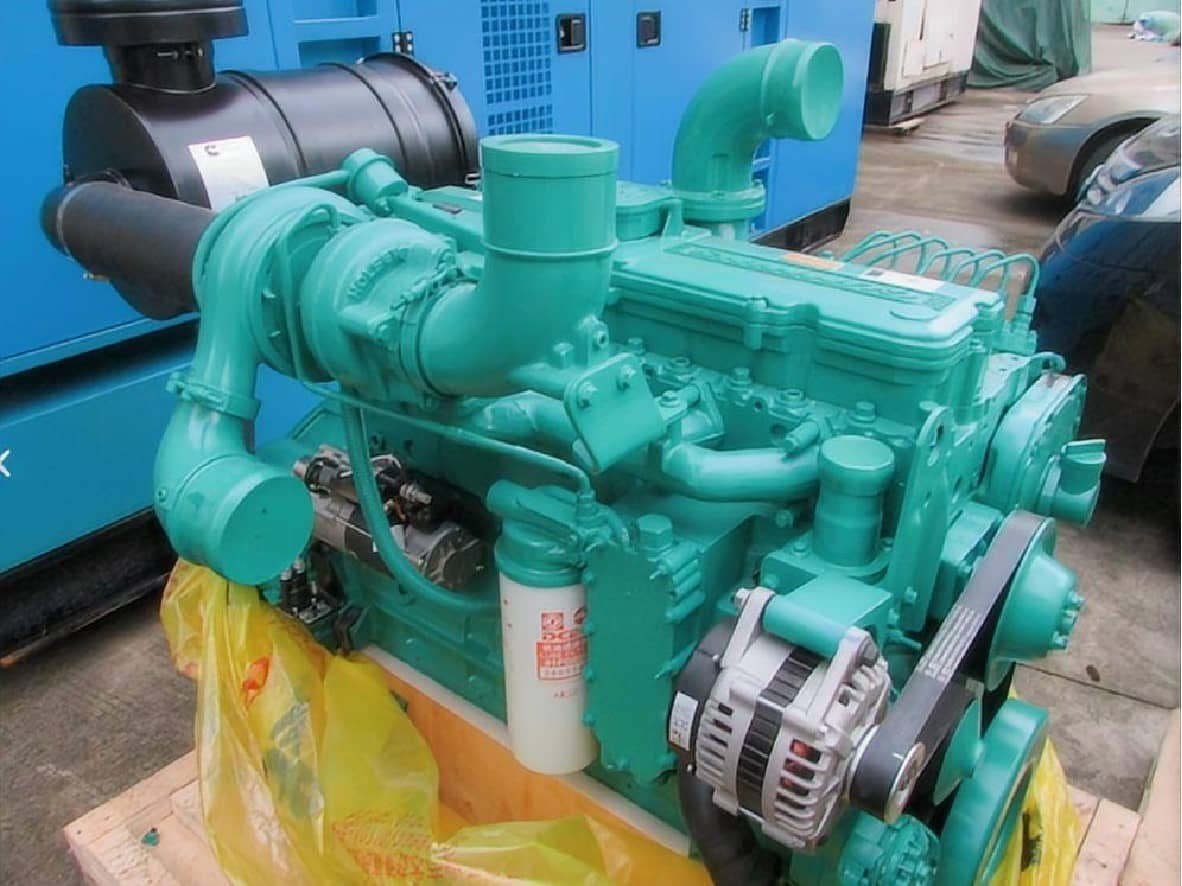

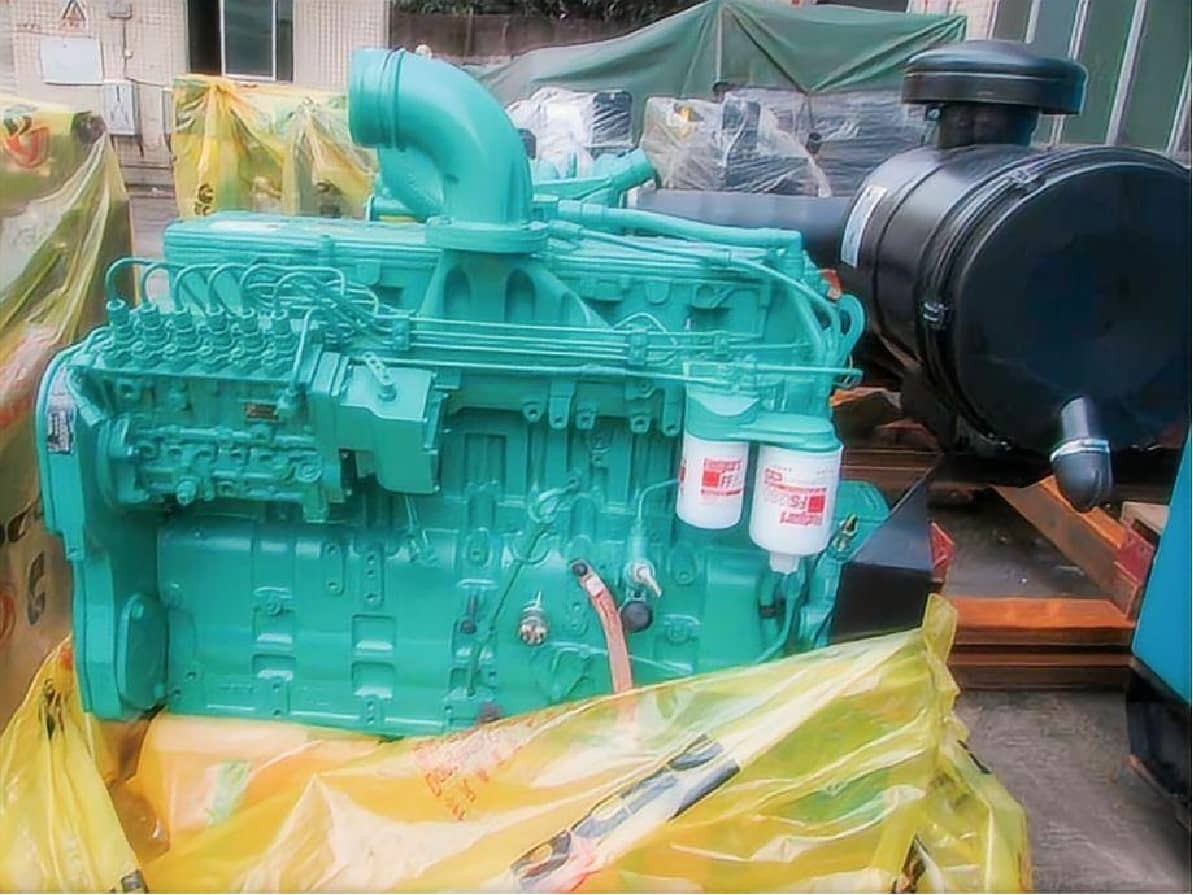

6LTAA8.9-G3-230KW
Original Cummins, new machines at absolute wholesale prices.
HekoPower Group is the reliable choice.
Our partner Cummins, a global power solutions leader, comprises five business segments – Components, Engine, Distribution, Power Systems and Accelera by Cummins – supported by Cummins global manufacturing and extensive service and support network, skilled workforce and vast technological expertise. In 1981, Chongqing Engine Plant started to license-produce Cummins engines, and in 1995, it jointly established a Chinese joint venture engine factory with Cummins.
6LTAA8.9-G3-230KW is the generator used as a backup or safety equipment in the absence of mains power or in the event of a power failure and/or blackout.
Technical Specifications
General Engine Data
Engine Model: Cummins 6LTAA8.9-G3-230KW
Type: 6 Cylinders in Line, 4 Stroke Diesel
Displacement: 8.9 L
Bore * Stroke: 114 * 145
Net Weight: 650 Kg
Overall Dimension: 1149mm*799mm*1022mm
Key Performance Date
Rated Power/Standby Power(1500 rpm): 230 kW/308 HP, 250 kW/355 HP
Rated Power/Standby Power(1800 rpm): 255 kW/342 HP, 282 kW/378 HP
Rated Speed: 1500/1800 rpm
Low Idle Speed: 850-950 rpm
Fuel Consumption @ Running: ≤ 220g/Kw.h
More Technical Data
Aspiration: Turbocharged/Charge Air Cooled
Fuel System: BYC P7100 Pump/GAC Governor
Electrical System (Starter Motor/Alternator): 12V/24V
Lowest Starting Temp Without auxiliary system: -12℃
Cooling Method: Water cooled
Engine Cooling Fluid Volume: 11.1 L
Governor Type: Electronic, Regulation ≤5%
Compression Ratio: 16.6:1
Cummins L8.9-G Series
Cummins L8.9-G Series, original products from Dongfeng Cummins Engine Plant (DCEC), Cummins Joint Venture Plant since 1986, 50% shareholding by Cummins USA. This series mainly includes 6LTAA8.9-G2-220KW, 6LTAA8.9-G3-230KW.In accordance with the criteria of Machinery Safety Directive 2006/42, movable elements such as distribution belts, fans, and parts that acquire high temperatures during operation, such as exhaust manifolds, have their respective safeguards. Before being delivered, the generator is thoroughly checked at the factory. Voltage, frequency, and load are all tested, as well as the appropriate operation of warnings and the influence of engine oil temperature on stop.
Fuel system
Bosch P7100 type mechanical fuel injection pumps have high injection pressure, optimize engine performance and establish an unrivalled reputation for reliability.
Electronic Governor Control Unit
Strengthening electronic governor control unit to optimize engine speed stability, transient response and reliability.
Cummins Holset HE400 and HE500 Non- wastegate turbocharger
Cummins optimized turbocharger delivers increased power, fuel economy, low smoke and lower noise levels.
Electronic Fuel Shut Off Valve
Robust design for safety for mechanical fuel system engine.
Integrated Block Design
Integrated fluid circuits replace hoses and eliminate potential leaks.
24-Valve Cylinder Head
Four valves per cylinder for increased power with faster response and improved fuel economy.
Coolpac Integrated Design
Products are supplied complete with cooling package and air cleaner kit for a complete power package. Each component has been specifically developed and rigorously tested for Cummins G-Drive standards, ensuring high performance, durability and reliability.
