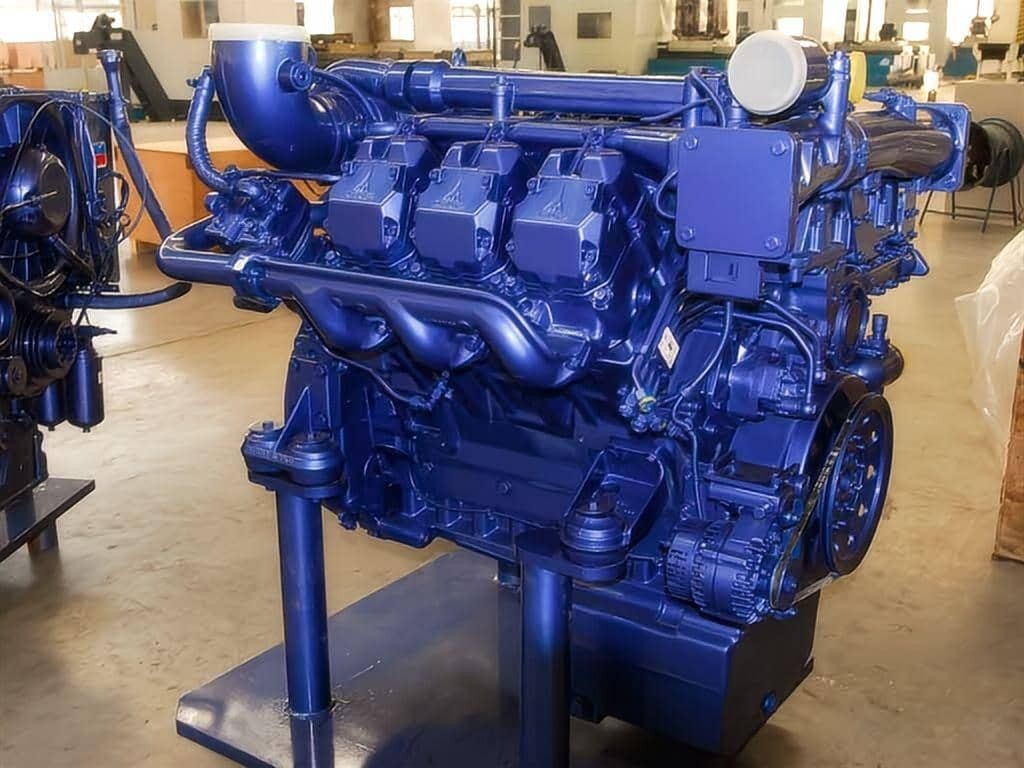

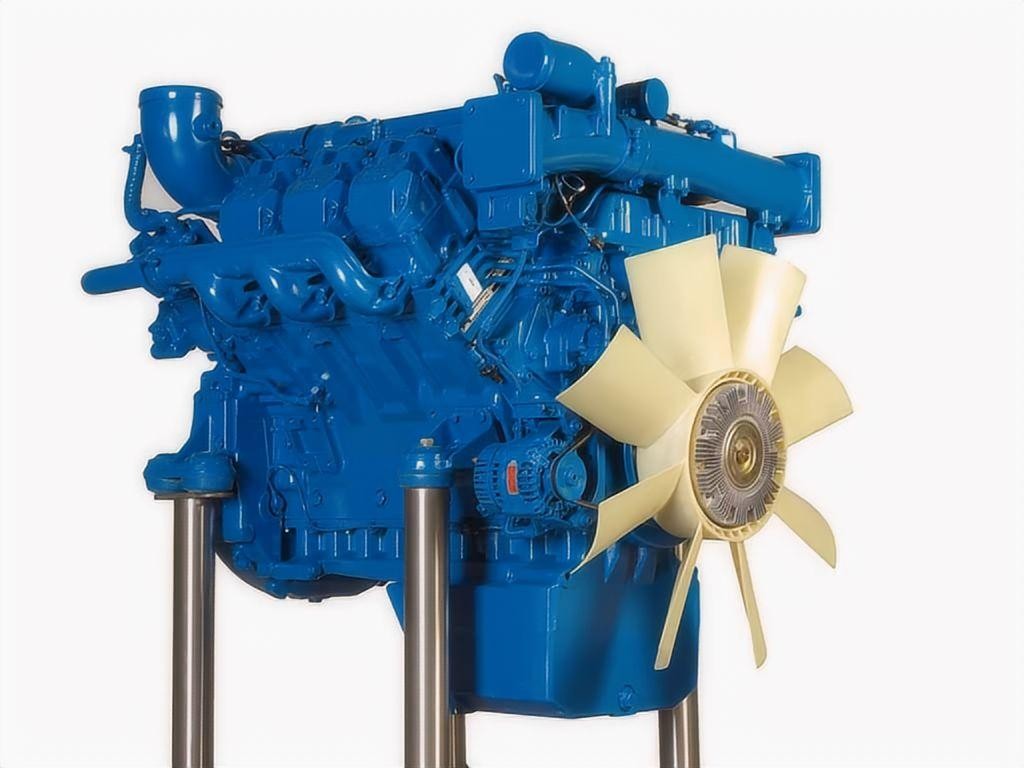

Deutz TCD2015V06-G5
Original Deutz licence plant, new machines at absolute wholesale prices.
HekoPower Group is the reliable choice.
Our partner Deutz, With 160 years of heritage, is one of the world’s leading manufacturers of innovative drive systems. Henan Diesel Engine Plant (HND) is Deutz Licensed Plant in China, fully Deutz technology and product line, owns the world-advanced internal combustion engine (diesel engine, gas engine) manufacturing technology with medium and high speed, large power. TBD234, TBD604 and TBD620 series diesel engines have been produced based on the German DEUTZ-MWM licensed technology introduced in 1985 and 1999.
Deutz TCD2015V06-G5 is the generator used as a backup or safety equipment in the absence of mains power or in the event of a power failure and/or blackout.
Technical Specifications
General Engine Data
Engine Model: Deutz TCD2015V06-G5
Type: 6 Cylinders, V Type
Displacement: 11.906 L
Bore * Stroke: 132 * 145
Wet Weight (with heat exchanger): 975 Kg
Overall Dimension: 1077mm*932mm*1141mm
Key Performance Date
Rated Power: 314 kW
Rated Speed: 1500 rpm
Idle Speed: 600 rpm
Fuel Consumption: 236 g/kW.hr
More Technical Data
Certification: Euro III
Aspiration: Turbocharged and Intercooled
Compression Ratio: 17.5:1
Electrical System (Starter Motor/Alternator): Electrical Start (24V)
Cooling Method: Water Cooled
Lubricant Capacity: 17 L
Fuel System: Direct Injection Pump
Deutz TCD2015-Generator Engine Series
Deutz TCD2015-Generator Engine Series, original products from Henan Diesel Engine Plant (HND). This series mainly includes Deutz TCD2015V06-G1, Deutz TCD2015V06-G2, Deutz TCD2015V06-G3, Deutz TCD2015V06-G4, Deutz TCD2015V06-G5, Deutz TCD2015V06-G6, Deutz TCD2015V08-GA, Deutz TCD2015V08-GB.
